Product Description
Frame and Impeller: Plastic (94V-0),PBT
Bearing Type: Sleeve bearing&Ball bearing
Function Range: FG IP58
Leadwire: Red Wire Positive(+),Black Wire Negative(-)
Operating Voltage: 5V 12V
Tempetature Range: –20℃ to +70℃
Motor: Impedance Protected and Reverse Polarity Protected

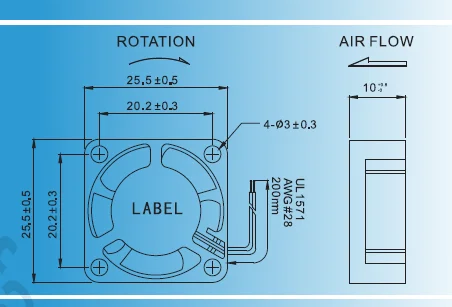

Dismension
| Model | Bearing Type | Rated Voltage | Operating Voltage | Input Current | Input Power | Speed | Max Air Flow | Max Static Pressure | Noise | Weight |
| Part No. | B.S | VDC | VDC | Amp | Watt | RPM | CFM | m3/ min | Inch-H2O | pa | dB-A | g |
| MX2510AB(S/Y)U5 | B.S.Y | 5 | 3.0-6.5 | 0.20 | 1.00 | 12000 | 2.24 | 0.06 | 0.21 | 51.39 | 25.00 | 6.00 |
| MX2510AB(S/Y)H5 | B.S.Y | 5 | 3.0-6.5 | 0.18 | 0.90 | 10000 | 1.91 | 0.05 | 0.16 | 39.42 | 24.00 | 6.00 |
| MX2510AB(S/Y)M5 | B.S.Y | 5 | 3.0-6.5 | 0.14 | 0.70 | 8000 | 1.46 | 0.04 | 0.09 | 22.65 | 22.00 | 6.00 |
| MX2510AB(S/Y)L5 | B.S.Y | 5 | 3.0-6.5 | 0.10 | 0.50 | 6000 | 1.00 | 0.03 | 0.05 | 13.44 | 18.00 | 6.00 |
| MX2510AB(S/Y)U1 | B.S.Y | 12 | 7.0-13.8 | 0.10 | 1.20 | 12000 | 2.24 | 0.06 | 0.21 | 51.39 | 25.00 | 6.00 |
| MX2510AB(S/Y)H1 | B.S.Y | 12 | 7.0-13.8 | 0.08 | 0.96 | 10000 | 1.91 | 0.05 | 0.16 | 39.42 | 24.00 | 6.00 |
| MX2510AB(S/Y)M1 | B.S.Y | 12 | 7.0-13.8 | 0.06 | 0.72 | 8000 | 1.46 | 0.04 | 0.09 | 22.65 | 22.00 | 6.00 |
| MX2510AB(S/Y)L1 | B.S.Y | 12 | 7.0-13.8 | 0.04 | 0.48 | 6000 | 1.00 | 0.03 | 0.05 | 13.44 | 18.00 | 6.00 |
